Description

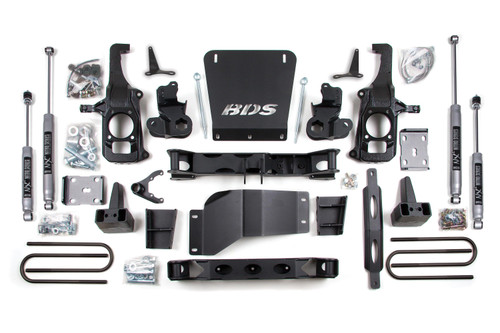

The 6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500 (11-19) | 5 Inch Block Kit w/ Overload / NX2 Nitro Series is a complete suspension upgrade that raises your Chevy Silverado or GMC Sierra 2500HD/3500 (2011-2019) and makes room for larger rubber. It raises the front 6.5 in. and the rear 5 in. Once installed, it makes room for tires up to 37 x 12.5 in.

This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the 5 in. block kit with overload option.

Features

  • Lift height: 6.5 in. front (cross-member), 5 in. rear (block)
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Front skid plate adds underbody protection and stiffens the front subframe
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Differential drop brackets help keep CV and driveline angles in check
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 37 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Front Lift Height
6.5 in.
Front Lift Method
Cross-Member
Max Tire Size
37 x 12.5 in.
Rear Lift Height
5 in.
Rear Lift Method
Block
Rear Lift Option
5 in. Block Kit With Overload
Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
2WD/4WD
Finish
Powdercoat
Kit Components
Includes one BDS021508, 11 HD 5 in Rear w/overloads, UPC Code 658848614738Includes one BDS021650, 11 GM HD 4.5-6.5in System (1of4), UPC Code 658848614950Includes one BDS021651, 11 GM HD 4.5-6.5in System (2of4), UPC Code 658848614967Includes one BDS0
Last Update
2026-10-20 16:20:18
Lift Height
6.5 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500 (11-19) | 5 Inch Block Kit w/ Overload / NX2 Nitro Series

6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500 (11-19) | 5 Inch Block Kit w/ Overload / NX2 Nitro Series

BDSBDS197H
