Description

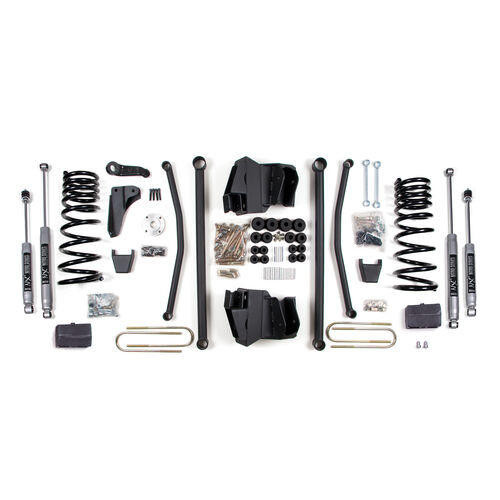

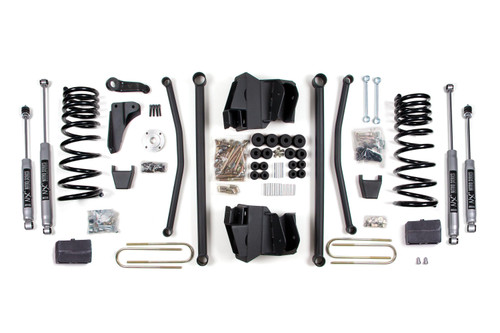

Built for drivers who want more clearance and a stronger stance, the 8 Inch Lift Kit | Long Arm | Dodge Ram 2500 (09-13)/3500 (09-12) 4WD | Diesel | Block Kit / 4 Inch Axle / NX2 Nitro Series transforms your Dodge Ram 2500 (2009-2013)/3500 (2009-2012) 4WD. It raises the front 8 in. and the rear 5 in. Once installed, it makes room for tires up to 38 x 13.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the block kit option. It is set up for the 4 in. Axle rear axle.
Features
- Lift height: 8 in. front (coil spring), 5 in. rear
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- New U-bolts sized for the lifted rear
- Lower control arms help locate the axle at the new ride height
- Track bar components keep the axle centered under the vehicle
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 38 x 13.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 8 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 38 x 13.5 in.
- Rear Axle Option
- 4 in. Axle
- Rear Lift Height
- 5 in.
- Rear Lift Option
- Block Kit
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Silver
- Drive
- 4WD
- Finish
- Powdercoat
- Fuel Type
- Diesel
- Installation Time
- 8 Hours
- Kit Components
- Includes one BDS012516, Dodge 5 inch Rear Block Kit w/4 inch, UPC Code 658848612598Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857Includes one BDS012803,
- Last Update
- 2026-10-20 15:48:42
- Lift Height
- 8.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
