Description

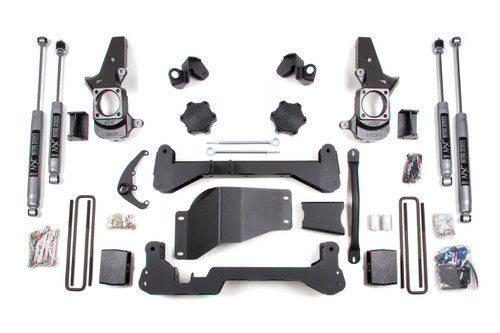

The 4.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 2500HD/3500 (01-10) SRW 4WD | NX2 Nitro Series / Standard Knuckle is a complete suspension upgrade that raises your Chevy Silverado or GMC Sierra 2500HD/3500 (2001-2010) SRW 4WD and makes room for larger rubber. It raises the front 4.5 in. and the rear 3 in. Once installed, it makes room for tires up to 33 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Knuckle choice: Standard Knuckle.
Features
- Lift height: 4.5 in. front (cross-member), 3 in. rear (block)
- Tall-arch 1/4 in. steel crossmembers built for clearance and strength
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 33 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 4.5 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 33 x 12.5 in.
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Block
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
- Track Width Option
- Standard Knuckle
