COMEUP SEAL Gen2 20.0 12V Winch 295230

12V DC severe duty winch rated at 20,000 lbs. pulling meets or exceeds your expectations. Heavy-duty series-wound motor equipped with thermal switch alters when motor over-heating. 4 equally positioned pin holes with a stainless-steel ergonomic T-handle make it possible to clock in 90-degree Increments. Water-proof remote control with thermometric LED indicator w/5 m cord. Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch in foot forward mount. U.S. Germany, U.K. France, etc. patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism. Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.

• Rated Line Pull: 20,000 lbs. single line
• Motor: 5,220w/ 7.0hp 12V Series Wound
• Gear Ratio: 3-Stage Planetary 343:1
• Clutch (free-spooling): Rotating Ring Gear
• Brake (outside the drum): Automatic, full load CBS
• Winch Construction: Aluminum Die cast housing with Steel Drum
• Drum Size: 3.5” x 8"
• Control: Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17’ cord
• Rope Type: 6x29-IWRC
• Rope Size: 1/2" x 59"

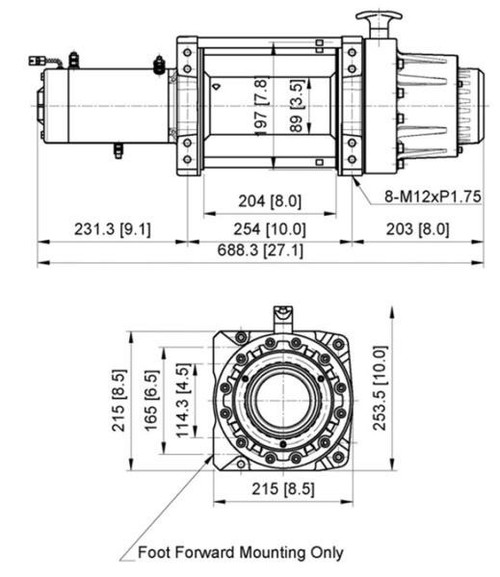

• Mounting Bolt Pattern: 10” x 4.5”
• Winch weight: 132 lbs.
• Gross weight: 169.7b
• Warranty: Limited lifetime warranty for mechanical components, three-year warranty for electrical components
• Box dimensions: 29.1” x 10.6” x 19.5”
