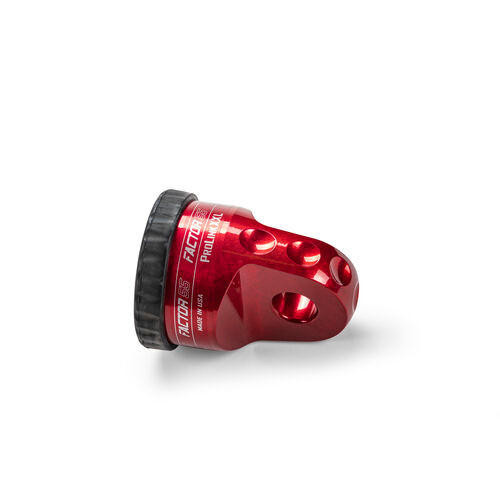

The ProLink XXL provides winch owners with a means to replace the conventional winch hook with a safer and stronger screw pin shackle/D-ring. Originally designed for 24,000 lb. military winch applications, the ProLink XXL is now available to the general public. Like all models in the ProLink family, the XXL is engineered and made in the USA from 6000 series billet aluminum and is equipped with a 3/4? 6Al-4V titanium double shear pin. The base of the XXL is protected by a barbed, high durometer EPDM rubber guard. Working load limit of 24,000 pounds and an ultimate failure of over 63,000 pounds. The XXL is compatible with steel cables and synthetic ropes up to 1/2" in diameter. The XXL is compatible with common 3/4? and 7/8? shackles.
- Color:
- RED
- Finish:
- Powdercoat
- Material:
- 6061 Aluminum
- Title:
- PROLINK XXL WINCH SHACKLE MOUNT -- RED
- Tubing Diameter:
- 00465
