The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your GMC, 1500 19-On! Available in White or Amber, this kit utilizes the factory fog pocket location to pack two S1 lights on each side.
This kit is controlled by the factory fog switch to operate the lower pair S1 lights. The upper pair of S1 lights are operated by your high beams. The included wiring harness is designed to be used in conjunction with factory light switches, and sPOD / Switch Pros units.
If you're looking to add not only safety but lighting performance this is your kit!
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService- Replaceable Lenses And Optics
- ClearView- All The Light, Right Where You Need It.
- MoistureBlock- Waterproof, Rain Proof, Submersible
- CopperDrive- Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications (Per Light):
- Lumens: 2,375 Utilizing 1 LED
- Wattage/Amps: 20W / 1.45A
- Dimensions: 2.1 inch x 2.1 inch x 2.1 inch
- Safe Voltage Range: 9-28V
- Weight: 0.4 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Application:
GMC, 1500 (19-On)

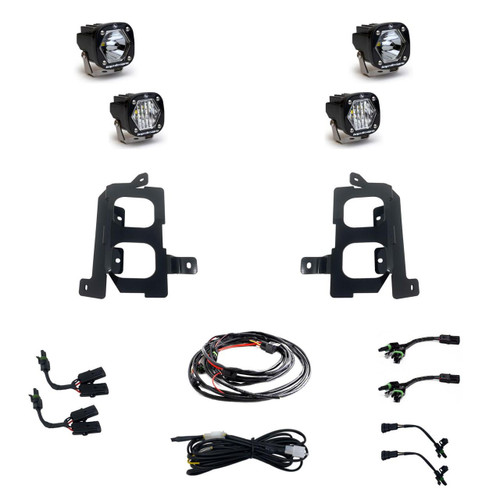

Includes:
- x2 S1 Clear Spot
- x2 S1 Clear Wide Cornering
- x2 Fog Pocket Brackets
- x2 Adapters
- x2 Wiring Splitters
- x1 Wiring Harness
Patterns:
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
- series:
- S1
- universal:
- No
- warranty:
- Limited Lifetime
- Bezel Material:
- Billet Machined Aluminum
- Bracket Material:
- Stainless Steel
- Brackets:
- Yes
- Brand Logo:
- https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg
- Housing Type:
- Hard Anodized and Powder Coated Cast Aluminum
- Last Update:
- 2024-07-12 05:35:45
- Lens Color:
- Clear
- Lens Material:
- Hard Coated Polycarbonate
- Life Expectancy:
- 49,930 Hours
- Light Pattern:
- Spot
- Sold As:
- Kit
- Vehicle Type:
- Truck/SUV
- Waterproof Rating:
- IP69K (Waterproof up to 9ft Pressure Washable)
- LTL:
- N
- Supplier Order ID:
- 514536
- Supplier Part Number:
- baj448085
- California Prop 65 Notice:
- CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
