Set your Ford Super Duty apart from the rest than with some Baja Designs LED Light Bars. Our Ford Super Duty LED Light Bar Mount Kit has been specifically designed for 2011-2014 Ford Super Duty models giving you that clean OEM look.
This mount kit allows for easy installation of a 20 inch OnX6 LED Light Bar. This mount kit also comes equipped with a wiring harness that allows you to use a separate auxiliary switch.
Baja Designs Features:
- Satisfactions Guarantee -30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock- Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
- Wattage/Amps: (High) 216W / 16.6A (Low) 160W / 12.0A
- Dimensions: 20 inch x 4.29 inch x 2.69 inch
- Weight: 7.85 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

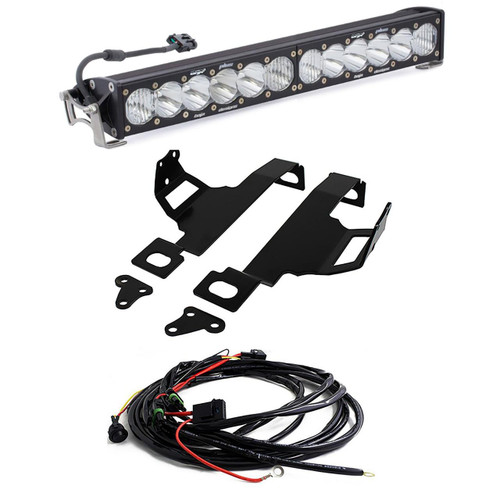

Includes:
- x2 2011-2014 Ford Super Duty Mounting Brackets
- x1 OnX6+, 20 inch Driving/Combo LED Light Bar
- Wiring Harness
- Hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
- series:
- OnX6 Series
- universal:
- No
- Bezel Material:
- Billet Machined Aluminum
- Bracket Material:
- Stainless Steel
- Brackets:
- Yes
- Brand Logo:
- https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg
- Housing Type:
- Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Last Update:
- 2024-07-12 05:35:28
- Life Expectancy:
- 49,930 Hours
- Sold As:
- Kit
- Vehicle Type:
- Truck/SUV
- Waterproof Rating:
- IP69K (Waterproof up to 9ft Pressure Washable)
- California Prop 65 Notice:
- CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
- Supplier Part Number:
- baj447790
- LTL:
- N
- Supplier Order ID:
- 711932
