The Ford Super Duty (11-16) Fog Pocket Kit allows you to mount 2 SAE Squadron auxiliary lights in the factory location. This Plug and Play kit includes two Squadron Pro Wide Cornering lights, two vehicle specific mounting brackets and a wiring adapter, allowing you to use your factory switch and mounting hardware.

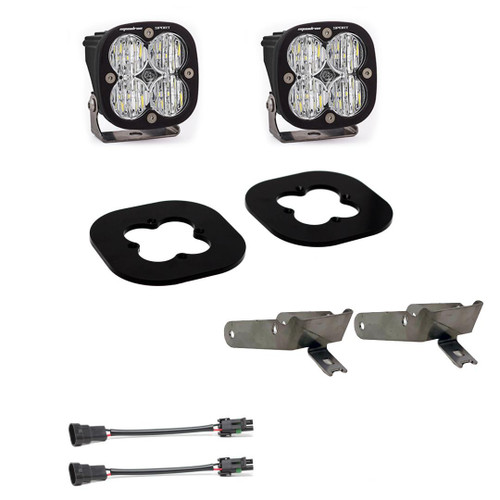

Includes:
- x2 Ford Super Duty (11-16) Fog Pocket Brackets
- x2 Wiring Adapters
- x2 Squadron SAE Clear with Vehicle Specific Bezels
Baja Designs Features:
- Satisfaction Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService- Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications (Per Light):
- Lumens: 2,480 Utilizing 4 Cree LEDs
- Compliance Standard: SAE Standard J583
- Wattage/Amps: 22W / 1.6A
- Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
- Weight: 12 ounces
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
- universal:
- No
- warranty:
- Lifetime Limited
- Bracket Material:
- Stainless Steel
- Brackets:
- Yes
- Brand Logo:
- https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg
- Color:
- Clear
- Finish:
- Powdercoat
- Housing Type:
- Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Last Update:
- 2026-03-25 10:16:10
- Lens Color:
- Clear
- Lens Material:
- Hard Coated Polycarbonate
- Life Expectancy:
- 49,930 Hours
- Sold As:
- Kit
- Vehicle Type:
- Truck/SUV
- Waterproof Rating:
- IP69K (Waterproof up to 9ft Pressure Washable)
- LTL:
- N
- Supplier Order ID:
- 548221
- Supplier Part Number:
- baj447730
- California Prop 65 Notice:
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Add-On:
- Kit Contents-257805-Squadron SAE (Wide Cornering; Clear), Pair
