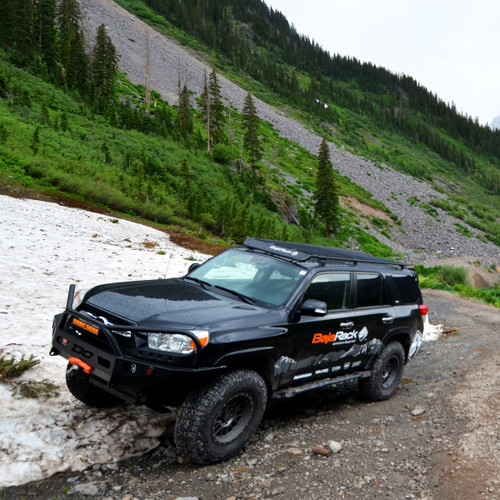

4Runner 5th Gen Utility Flat Rack NSR

This low profile, flat Toyota 5th Gen 4Runner roof rack is built with US-Made, cold-rolled steel tubing and best-in-class powder coating to ensure quality.

The top of this roof rack is completely flat to transport large objects such as lumber, canoes, rooftop tents, etc. We call this roof rack "UTility" for all the different applications it can handle.

If garage height is a concern, this rack is the best option. The installation is done directly to the body frame without drilling, the outside frame is made of 1-inch tubing, and the flooring with ½ inch cold roll steel tubing.

This rack was designed around the 4 factory mounting positions on the roof of the vehicle and also was designed without a sunroof cutout, there is a cutoff on the floor of the rack to avoid interference with the roof antenna. No drilling is required for the installation.

IF YOU BUY A RACK + LADDER PLEASE CHECK THIS NOTE:

Before you install your new BajaRack ladder check the gap on top of the hatch it needs to be 5/16” to 3/8” inch, if the upper top of the ladder does not enter the gap on the hatch do not install, and check the gap clearance with a dealer or shop.

EXTREMELY IMPORTANT NOTE:

Please verify the lip (edge) measurement before purchasing or installing your ladder, the standard dimension is between 0.100” (0.254mm) and 0.200” (0.508mm) if this dimension is larger than 0.200” (0.508mm) don’t install the ladder, Toyota in some models applies more sealant in this area that can cause the ladder to not fit.
Each rack includes all mounting brackets, stainless steel hardware, and aluminum wind deflector.
· Material and Thickness: 1” (25.4mm) and 1/2”(12.7mm) Steel tubing
· Wind deflector: .062” (1.57mm) 5050-H32 Aluminum
· Finish: Epoxy primer (rust inhibitor) with black powder coating
· Rack weight: 77 Lb (34.92Kg)
· Load Capacity: Dynamic (while driving) 300Lb (136 kg); Static 600Lb (272 kg)
· Measurements: 46” (1168.4 mm) Wide x 91.75” (2330.45 mm) Long x 1.5” (38.1 mm) tall
· Total Height (Top of roof to top of rack): 4"
· Cargo area: 19.16ft² (1.78m²)
· Mounting method: Roof mounts (2 front adjustable brackets and 4 support brackets)
