American Expedition Vehicles

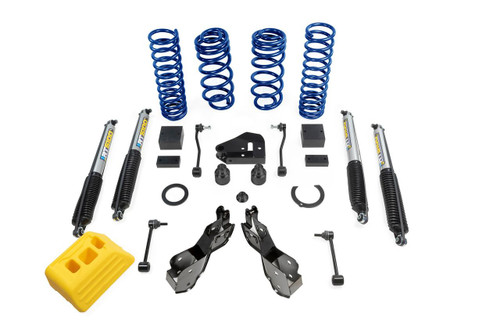

AEV 3" JL High Capacity RT Suspension - 4dr LHD Gas (2.0L/3.6L) - 5100 N0724305AA

Special Order Why?
$1,696.91
Adding to cart… The item has been added
$125.00
fixed shipping charge applies
SKU:
AEVN0724305AA
UPC:
810092170969
AEV first introduced OE-level suspension engineering to the aftermarket over 10 years ago. Today, we continue that legacy with our 2.5” DualSport RT Suspension System for the JL Wrangler.As a true, expedition-ready suspension system, coil spring and shock tuning was essential to provide the optimal balance of load carrying capacity and ride quality that customers have come to expect from AEV. The 2.5” DualSport RT Suspension System includes a set of our frequency-tuned, triple-rate coil springs to provide 2.5” of additional front and rear ride height. The JL Wrangler is equipped from the factory with a very soft coil spring and a relatively stiff shock package, which is not ideal for expedition travel when heavier cargo loads are introduced. For this reason, we went with progressive rate coil springs (available in standard load or high capacity) for additional load handling capability and then paired them with set of AEV-tuned, 46mm Bilstein 5100 series shock absorbers for a slightly firm, sportier feel. The AEV/Bilstein coil spring and shock combination used in this suspension not only increases both up travel and down travel but also provides better articulation as well as improved off-road speed potential and bottoming control.Customers can now fine tune their DualSport RT Suspension System even further by choosing one of two available coil spring options: 2.5” Standard Load Coil Springs are optimized for an AEV-spec Wrangler with typical gear/cargo inside. This means the ideal ride height, handling and overall performance will be achieved on a vehicle with steel bumpers, winch, full-size spare and recovery gear (+0-400 lbs. over factory weight). 3” High Capacity Coil Springs are specifically designed for overland enthusiasts who have a fully outfitted vehicle that is also consistently loaded with heavier gear (+400-600 lbs. over the standard load spring), such as modular cargo systems or roof rack/rooftop tent combinations*With the AEV DualSport RT Suspension System installed, the JL Wrangler’s front and rear suspension geometry is optimized throughout the entire range of motion, giving you the sporty, responsive handling characteristics that AEV suspension systems are known for. To optimized the JL Wrangler’s front and rear suspension geometry throughout the entire range of motion, giving you the sporty, responsive handling characteristics that AEV suspension systems are known for. To optimize the frontend geometry, a pair of AEV’s heavy duty, stamped control arm geometry correction brackets are included for an improved ride quality and reduced nose dive under hard braking. A rear track bar tower extension is included to correct the rear roll center while also generating a better turn-in response. Extended length front and rear sway bar end links compensate for the additional lift height, while new front and rear bump stop spacers improve bumper/axle contact under full articulation and jounce. Due to this suspension system’s lower lift height, there is no need to swap out any of the OE track bars, control arms or steering components.
  • Maximum recommended tire sizesISport/Sahara (North America): 35×12.50R17IRubicon (North America): 37×12.50R17
  • Sport/Sahara/Rubicon (Export): 35×12.50R17
resources:
https://www.aev-conversions.com/wp-content/uploads/2019/04/AEV30344AF-JL-2.5in-DualSport-RT.pdf
