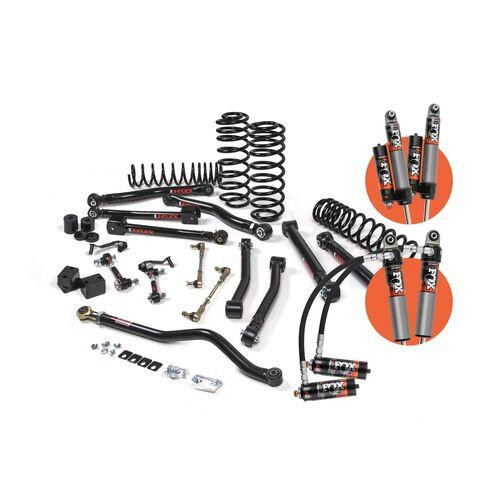

2018-2023 Jeep Wrangler JL 2 Door 3 Inch J-Krawl System Rubber Fox 2.5 IFP PS Front/Rear Standard Rate Coils JSPEC JSPEC189PS

JKS Mfg adds specially tuned FOX 2.0 Adventure Series IFP Gas Shocks to lineup for Jeep Wrangler JL.

Designed for improved damper performance in rough terrain and all around comfort and control, thee shocks take advantage of FOX's racing pedigree and offering an affordable option that packs true race proven capability.

They feature a monotube design and an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain. Lengths and shock tuning have been specially designed for the JKS lift kits to optimize performance.

Get more out of your lifted Jeep JL FOX Adventure Series 2.0 shocks.

Shock Details:

• Fox 2.5 Performance Shocks
• Standard Rate Coils
• Rubber Bushing

Tire Specs

• Rubicon Models (all kits)
• Tire: 37x12.50
• Wheel: 17x9, 18x9, 20x9
• Backspacing: 5 inch
• Non-Rubicon Models (all kits)
• Tire: 35x12.50
• Wheel: 17x9, 18x9, 20x9
• Backspacing: 5 inch

Other tire/wheel sizes can be used, however may require additional modifications.

Important Notes

• Diesel models may achieve up to 1 inch less lift height.
• Factory wheels cannot be reinstalled without wheel spacers.
• HD front springs recommended for applications with aftermarket winch/bumper combo
• HD rear springs recommended for applications with rear mounted full size spare tire.
• Front aftermarket driveshaft strongly recommended due to additional travel capability.
• Will not fit Rubicon 392 models

Kit Components

Includes one FOX88624155, Kit: 2018-2024 Jeep Wrangler JL, Front and Rear, 2-3.5 inch Lift, 2.5, IFP, UPC Code 814897017788
Includes one JKS1632, 2018-2024 Jeep Wrangler JL Front Adjustable Lower Control Arm Kit, UPC Code 711745607125
Includes one JKS1634, 2018-2024 Jeep Wrangler JL / 2020-2024 Jeep Gladiator JT Adjustable Front Upper Control Arm - Rubber, UPC Code 711745607163
Includes one JKS1636, 2007-2018 Jeep Wrangler JK, 2018-2024 Jeep Wrangler JL Rear Adjustable Adjustable Lower Control Arm - Rubber, UPC Code 711745607101
Includes one JKS1639, 2007-2018 Jeep Wrangler JK 2018-2024 Jeep Wrangler JL Rear Adjustable Upper Control Arm - Rubber, UPC Code 711745607088
Includes one JSPEC1251, 2018-2024 Jeep Wrangler JL 2.5 inch Front Coil Spr inchg Kit - STD, UPC Code 814897012288
Includes one JSPEC1259, 2018-2024 Jeep Wrangler JL 2.5 inch Rear Coil Spr inchg Kit - STD, UPC Code 814897012318
Includes one JSPEC1312, 2018-2024 Jeep Wrangler (JL) J-Krawl Ma inch Box Kit, UPC Code 814897012592
